Quantitative evaluation of parotid gland dysfunction in patients with hyposalivation using magnetic resonance imaging mapping technique

Quantification of Parotid gland function using MRI

BMC Oral Health volume 25, Article number: 525 (2025) Cite this article

Abstract

Objective

This study aimed to assess the feasibility of quantitative magnetic resonance imaging (MRI) employing the multi-dynamic multi-echo (MDME) technique as a diagnostic modality for evaluating glandular dysfunction in patients with hyposalivation.

Methods

The MDME technique generated T1, T2, and proton density (PD) maps of the parotid gland, allowing for the simultaneous acquisition of values from the respective mappings. The Mann–Whitney U-test was used to compare the hyposalivation and control groups, and receiver operating characteristic (ROC) curve analysis was performed.

Results

A total of 71 patients who underwent MDME MRI were reviewed and categorized into hyposalivation patients (n = 32) and healthy controls (n = 25). The average T1, T2 and PD value of the gland in the hyposalivation group were 606.92 ms, 91.85 ms, and 82.52 pu, respectively, whereas those in the control group were 628.08 ms, 80.69 ms, and 91.12 pu, respectively. The T2 and PD values were significantly different between the hyposalivation and control groups. The cut-off T2 value was 85.75 ms (AUC = 0.8131, p < 0.0001) and the cut-off PD value was 81.55 pu (AUC = 0.7588, p = 0.0009).

Conclusions

T2 and PD values derived from the MDME technique demonstrated strong potential for detecting parotid gland dysfunction in hyposalivation patients. These findings suggest that MDME-based quantitative MRI mapping shows promise in evaluating hyposalivation of the parotid gland and could become a valuable diagnostic tool in clinical settings.

Peer Review reports

Introduction

Saliva is essential for oral and systemic health, consisting mainly of water (∼ 99%) along with electrolytes, proteins, enzymes, and antimicrobial agents. It facilitates lubrication, digestion, pH buffering, antimicrobial defense, and enamel remineralization. Salivary dysfunctions primarily include hyposalivation and xerostomia [1, 2]. Hyposalivation is an objectively measured decrease in saliva production, often caused by medications, systemic diseases (e.g., Sjögren’s syndrome), radiation therapy, or aging [2]. Xerostomia, in contrast, is the subjective sensation of dry mouth, which can occur even with normal salivary flow. Management includes saliva substitutes, sialagogues, hydration, and behavioral interventions [2]. A clear understanding of saliva and its dysfunctions is essential for effective diagnosis and treatment.

Currently, hyposalivation can be diagnosed in clinics using the passive drool test [3]. During the test, saliva is collected from the patient for a certain period by stimulating its flow using gum or candy. Hyposalivation can be diagnosed when the unstimulated salivary flow rate is ≤ 0.1 mL/min or the stimulated salivary flow rate is ≤ 0.5–0.7 mL/min [1]. This passive saliva drool test is currently the gold standard for detecting a reduction in salivary flow [4]. Löfgren et al. emphasized the importance of functional assessment and the need for accurate diagnostic tools for hyposalivation to effectively identify patients requiring treatment for dryness [5].

Salivary gland scintigraphy using technetium-99 m pertechnetate is a clinically widely used functional imaging modality for assessing gland, however, it dose not show anatomical information. As magentic resonance imagings (MRI) offers an advantage in providing functional information collaborated with anatomical details, researchers are exploring optimal MRI sequences for evaluating salivary gland [6,7,8,9,10,11]. Diffusion-weighted imaging (DWI) has frequently been studied for the quantitative evaluation of salivary gland function. DWI is a technique that measures the movement of water molecules within tissues. When water molecules diffuse actively, the signal is lower, resulting in darker images, while restricted water diffusion leads to brighter images. These variations in diffusion can be quantified and presented as apparent diffusion coefficient (ADC) values through mathematical formulas. According to previous studies, ADC values have been found to correlate significantly with the level of salivary flow within the salivary glands, making DWI a valuable tool for assessing salivary gland function, particularly in patients with gland dysfunction [6, 7, 9,10,11,12]. However, due to the low resoluation of DWI, location of precise region of the gland may not possible [13]. Another approach uses fat fraction measurements in the salivary gland to evaluate its function, as the gland undergoes fatty degeneration when its function declines. However, studies highlight the limitation of this technique, as the fat fraction in the gland can vary according to factors such as age and body mass index, even in non-dysfunctional glands [8, 14]. Overall, an additional imaging technique is required to present a strong correlation with the functional aspects of the gland [8].

Quantification of MRI parameters, including T1, T2, and proton density (PD), provides tissue-specific values that reflect the intrinsic characteristics of tissue properties under a magnetic field. These values have been used in the diagnosis of various diseases, such as liver cirrhosis and Alzheimer’s disease [15,16,17]. Additionally, as demonstrated by Zhou et al. [18] and Vidmar et al. [19], T2 mapping has shown potential in assessing parotid gland function following radiotherapy for head and neck cancers, suggesting its applicability to salivary glands. However, the application of these techniques to salivary gland evaluation has been limited due to the lengthy acquisition times required for traditional mapping methods. Moreover, acquiring T1 and PD maps is even more challenging than T2 mapping because of the significantly longer imaging times, which has hindered their research and application. The recent development of the multi-dynamic multi-echo (MDME) sequence has addressed these limitations, enabling the simultaneous acquisition of T1, T2, and PD maps in approximately half the time required by conventional methods. This method generates various contrast images by manipulating multiple scanning parameters during a single acquisition [20].

Therefore, This study aimed to assess the feasibility of quantitative MRI employing the MDME technique as a diagnostic modality for evaluating glandular dysfunction in patients with hyposalivation.

Materials and methods

Selection of participants

This study utilized a retrospective design with a convenience sample, including patients who underwent MRI in dental hospital between July 2020 and December 2022, and only images obtained using the MDME method were included. Patients with orofacial pain conditions, such as temporomandibular joint disease, trigeminal neuralgia, or Sjögren’s syndrome, underwent imaging examinations following the hospital’s imaging protocol. The clinical records of patients were thoroughly reviewed. Patients who underwent an initial assessment for subjective oral dryness through a questionnaire were included. Patients who reported symptoms of dryness and had a whole saliva flow rate of less than 0.7 mL/min were classified into the hyposalivation group. Those who did not report dryness were categorized as the control group [1, 5]. Patients with salivary gland disorders, including tumors, those taking medications that affect gland function, or those who had undergone head and neck radiotherapy were excluded. MRI with artifacts or incomplete coverage of the gland structure were excluded.

Ethics approval and consent to participate

This study was conducted in accordance with the ethical standards outlined in the Declaration of Helsinki and relevant national regulations. The study protocol was reviewed and approved by the Institutional Review Board (IRB) of Yonsei University Dental Hospital (Approval Number: 2-2021-0058). Given the retrospective nature of the study and the use of anonymized data, the IRB waived the requirement for obtaining informed consent to participate. No identifiable patient data were included in the analysis or presentation of this study.

Image acquisition and analysis

The MRI scans were performed using a 3.0-T scanner (Pioneer; GE Healthcare, Waukesha, WI, USA) with a large Flex coil. T1 and T2 relaxation times and PD values were obtained using the multivariate empirical mode decomposition method in the axial orientation, with the following imaging parameters for synthetic reconstruction: repetition time (TR), 4000 ms; echo time (TE), 21.3 and 85.2 ms; four different inversion times (TIs), 211, 611, 1811, and 3811 ms; field of view (FOV), 210 × 210 mm; acquisition matrix, 300 × 200; reconstructed voxel size, 0.7 × 1.0 mm; slice thickness, 2.5 mm; and echo train length, 12. The image acquisition time was 6 min and 40 s.

The overall image analysis was conducted by two oral and maxillofacial radiologists, each with over 10 years of experience. Measurement calibration was performed using two samples before the measurements, and during the experiment, they discussed each step until a consensus was reached. The axial slice displaying the largest area of both parotid glands was selected, following the methodology of previous studies [8, 21]. To include parenchymal tissue without intra-parotid lymph nodes or vessels, square-shaped regions-of-interest (ROI) with a size of 0.1 cm2 were placed on the deep, middle, and superficial parenchyma of the gland on the master quantitative map (Fig. 1A). The console then displayed the same ROI on the T1, T2, and PD maps. For each map, the corresponding T1, T2, and PD values were extracted from the defined ROI (Fig. 1B). These values were obtained by measuring the T1 and T2 relaxation times in milliseconds (ms) and PD value in percentage units (pu) within the selected region. The values from the six ROIs of each individual map (T1, T2, and PD) were then averaged for further analysis, based on a previous study that found no significant difference between the right and left parotid glands [8, 14, 22].

Fig. 1
figure 1

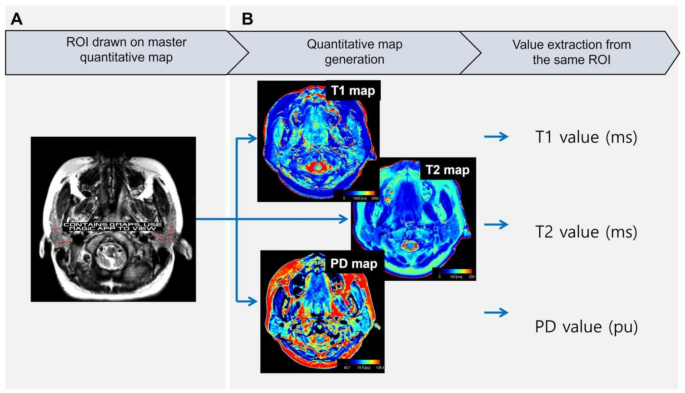

(A) Schematic view of the region-of-interest (ROI) selection on a quantitative map using the multi-dynamic multi-echo technique. ROIs of 0.1 cm2 with a square shape were established on the master quantitative map. (B) The T1 and T2 and proton density (PD) values were extracted simultaneously from each ROI and the average value was used for analysis. (ms, miliseconds; pu, percentage units)

Full size image

Statistical analysis

The T1, T2, and PD values of the hyposalivation group were compared with those of the control group. Shapiro-Wilk normality tests were performed, and since the normality assumption was not satisfied, the Mann–Whitney U test was used for comparison, with a confidence interval of 95%. A p-value of < 0.05 was considered statistically significant. Receiver operating characteristic (ROC) analysis was conducted for variables that showed significant differences between the two groups. Diagnostic cut-off values were determined using Youden’s index. Comparisons between Area under the curve (AUC) was conducted using the method suggested by Hanley and McNeil [23]. Statistical analyses were performed using GraphPad Prism version 9.5.1 for Windows (GraphPad Software, San Diego, CA, USA).

Results

Thirty-two patients with hyposalivation and 25 controls were included in this study (Fig. 2). The average age of patients included in the study was 49.39 ± 19.16 years with a male to female ratio of 1:3.75 (male, 12; female, 45). The patient information of each group, hyposalivation and control was described in Table 1.

Fig. 2
figure 2

Flowchart showing patient selection and screening process. MRI, magnetic resonance imaging

Full size image
Table 1 Patient information of overall study subjects
Full size table

The average T1, T2 and PD value of the gland in hyposalivation group were 606.92 ms, 91.85 ms, and 82.52 pu, respectively. The average T1, T2 and PD value of the control group were 628.08 ms, 80.69 ms, and 91.12 pu, respectively (Fig. 3). The T2 and PD values were significantly different between the hyposalivation and control groups, whereas there was no significant difference in T1 value between the two groups. The cut-off value was 85.75 ms (AUC = 0.8131, p < 0.0001) for T2 map and 81.55 pu (AUC = 0.7588, p = 0.0009) for PD map (Fig. 4). Number of true positive, true negative, false positive, false negative, sensitivity, specificity, and AUC of T2 and PD value were described in Table 2. The PD map demonstrated higher specificity, but lower sensitivity compared to the T2 map. The diagnostic performances of T2 and PD maps were similar (p = 0.5301).

Fig. 3
figure 3

Comparison between patients with hyposalivation and control participants with respect to the T1 and T2 and proton density (PD) values. *Mann–Whitney U-test, 95% confidence interval. (ms, miliseconds; pu, percentage units)

Full size image
Fig. 4
figure 4

Receiver operating characteristic curve of T2 and proton density (PD) values for diagnosis of hyposalivation gland

Full size image
Table 2 Comparitive analysis of the diagnostic performance of T2 and PD values
Full size table

Discussion

This study demonstrated that quantitative MRI mapping, particularly the MDME technique, has potential as a diagnostic tool for evaluating parotid gland dysfunction in patients with hyposalivation. Specifically, T2 and PD values showed significant differences between hyposalivation patients and healthy controls, with T2 demonstrating “good” diagnostic performance and PD showing “fair” performance [24]. Both metrics were more effective for ruling out hyposalivation, given their higher specificity compared to sensitivity.

Quantitative MRI parameters, such as T1 and T2 relaxation time values, reflect intrinsic tissue characteristics and have been extensively studied for their biological significance in various organs. In this study, the T2 map emerged as a particularly useful diagnostic model for assessing gland function in hyposalivation patients. Another study on radiation-induced hyposalivation using T2 mapping showed that T2 values significantly increased continuously from pretreatment to mid- and post-radiation therapy [18]. Also, the previous literatures, T2 value have been used to diagnose malignant tumors, along with blood oxygen levels and iron quantification [25,26,27]. Studies suggested that functional impairment in the salivary glands with ongoing parenchymal degeneration and congestion manifests as a T2 value difference.

The PD value, which reflects free water contrast [15], was also shown to be lower in dysfunctional glands, aligning with the understanding of impaired salivary gland function. Meanwhile, T1 values did not show a significant difference between patients and healthy controls. Previous research suggested that T1 values may vary depending on the stage of tissue fibrosis or dysfunction [28]. For example, T1 increased in acute disease stages and decreased in chronic conditions [29]. In this study, the wide range of T1 values in hyposalivation patients may be attributed to the inclusion of individuals with varying stages of gland dysfunction, without strict disease stage control.

In terms of diagnostic potential, both T2 and PD maps were more effective for ruling out hyposalivation due to their higher specificity compared to sensitivity. Notably, while the T2 map demonstrated higher overall diagnostic accuracy, the PD map exhibited greater specificity than the T2 map. This suggested that the PD map may be particularly useful in correctly identifying individuals without the condition, thereby reducing false positives. Moreover, this imaging approach showed the potential to play a crucial role in distinguishing between xerostomia, a subjective symptom of dry mouth, and hyposalivation, which reflects an actual glandular functional impairment. Since gland dysfunction can manifest in varying degrees, the ability to differentiate between these conditions is clinically significant. By providing objective measurements of gland function, these imaging techniques could enhance diagnostic precision and improve patient management in cases where subjective symptoms alone may not accurately reflect glandular health.

Other studies using MRI techniques like DWI and fat fraction quantification provided mixed results for evaluating salivary gland function [6, 8, 14, 30, 31]. While DWI can reflect functional changes, its clinical accuracy could be limited due to challenges in identifying reliable ROIs, especially in the parotid gland, which is prone to air artifacts [7, 30, 32, 33]. By contrast, the MDME method used in this study provided higher resolution MRI maps, enabling more accurate ROI placement and better diagnostic performance [34].

Fat fraction quantification has also been explored for evaluating salivary gland dysfunction [8, 14, 31, 35]. Some studies reported good diagnostic performance, with AUC values similar to our findings [36]. However, measuring the fat fraction would be considered a more indirect approach, as it reflects the degenerative changes in the tissue caused by gland dysfunction rather than directly assessing the dysfunction itself [8, 14, 35]. Therefore, fat fraction diganostic techqniue presetned some limitation especially for patient’s weight or age factor might significantly affect gland fat fraction [31, 33].

This study is the first to apply the MDME technique to the diagnosis of hyposalivation, demonstrating its potential as a promising tool for assessing gland function through T1, T2, and PD maps. The technique offers a non-invasive alternative to conventional diagnostic methods, enabling targeted evaluation of specific salivary glands and reducing patient burden compared to salivary flow rate tests. Additionally, it provides a less invasive option than procedures like salivary gland biopsy.

However, the study had several limitations. The relatively small sample size from a single institution restricted the generalizability of the findings. Due to the small sample size and the retrospective nature of the study, it was not possible to analyze hyposalivation based on its underlying causes. Additionally, the normal and hyposalivation groups were not analyzed with equal sample sizes or matched for age and sex distribution. Recent previous research reported that the MDME method is reliable, which supports the credibility of our study [20]. However, while prior study was conducted using phantom, our study applied the technique to actual patients, highlighting a key difference. Therefore, future multicenter studies comparing imaging data obtained from different MRI systems are required to provide stronger evidence for the clinical reliability of this technique. In addition, further prospective studies comparing flow rate measurements of individual salivary glands with corresponding imaging values could enhance the reliability and accuracy of the diagnostic approach, further validating the technique’s clinical utility.

In conclusion, T2 relaxation time and PD values derived from the MDME technique demonstrated strong potential for detecting parotid gland dysfunction in hyposalivation patients. These findings suggest that MDME-based quantitative MRI mapping could become a valuable diagnostic tool in clinical settings. Further studies with larger and more diverse populations are warranted to validate and refine these results.

Data availability

All data used in this study are considered patient information and may be provided upon request, subject to approval through contact with the institution’s IRB coordinator (dentalirb@yuhs.ac).

Abbreviations

MRI:

Magnetic resonance imaging

MDME:

Multi-dynamic multi-echo

DWI:

Diffusion-weighted imaging

ADC:

Apparent diffusion coefficient

PD:

Proton density

ROI:

Regions-of-interest

TR:

Repetition time

TE:

Echo time

AUC:

Area under the curve
