Performance of artificial intelligence on cervical vertebral maturation assessment: a systematic review and meta-analysis

Abstract

Background

Artificial intelligence (AI) methods, including machine learning and deep learning, are increasingly applied in orthodontics for tasks like assessing skeletal maturity. Accurate timing of treatment is crucial, but traditional methods such as cervical vertebral maturation (CVM) staging have limitations due to observer variability and complexity. AI has the potential to automate CVM assessment, enhancing reliability and user-friendliness. This systematic review and meta-analysis aimed to evaluate the overall performance of artificial intelligence (AI) models in assessing cervical vertebrae maturation (CVM) in radiographs, when compared to clinicians.

Methods

Electronic databases of Medline (via PubMed), Google Scholar, Scopus, Embase, IEEE ArXiv and MedRxiv were searched for publications after 2010, without any limitation on language. In the present review, we included studies that reported AI models’ performance on CVM assessment. Quality assessment was done using Quality assessment and diagnostic accuracy Tool-2 (QUADAS-2). Quantitative analysis was conducted using hierarchical logistic regression for meta-analysis on diagnostic accuracy. Subgroup analysis was conducted on different AI subsets (Deep learning, and Machine learning).

Results

A total of 1606 studies were screened of which 25 studies were included. The performance of the models was acceptable. However, it varied based on the methods employed. Eight studies had a low risk of bias in all domains. Twelve studies were included in the meta-analysis and their pooled values for sensitivity, specificity, positive and negative likelihood ratios, and diagnostic odds ratio (DOR) were calculated for each cervical stage (CS). The most accurate CVM evaluation was observed for CS1, boasting a sensitivity of 0.87, a specificity of 0.97, and a DOR of 213. Conversely, CS3 exhibited the lowest performance with a sensitivity of 0.64, and a specificity of 0.96, yet maintaining a DOR of 32.

Conclusion

AI has demonstrated encouraging outcomes in CVM assessment, achieving notable accuracy.

Background

Artificial intelligence (AI) refers to the ability of machines to perform tasks that typically require human intelligence, such as learning, problem-solving, and decision-making [1]. Within AI, machine learning (ML) represents a key subset, enabling systems to learn from data and improve performance over time without explicit programming [2]. Building on the foundation of ML, deep learning (DL) leverages artificial neural networks (ANNs), particularly deep neural networks with multiple layers. These layers process data in increasingly abstract ways and enable models to automatically learn complex patterns and representations [3]. In contrast, rule-based AI employs explicitly defined rules crafted by human experts to solve problems. While this approach does not rely on data-driven insights, it demands significant expertise and is challenging to maintain or adapt as datasets evolve [4]. Statistical Modeling is the process of analyzing data using statistical methods to provide insight into the importance and relationships between independent and dependent variables [5]. DL eliminates the need for manual feature engineering by learning hierarchical representations of data through multiple layers [6]. Traditional AI methods, such as symbolic reasoning and rule-based systems, rely on predefined rules and logical operations to process inputs and generate outputs. These systems are explicitly programmed by human experts to perform specific tasks. Unlike rule-based AI, DL can discover patterns and representations directly from data without human intervention [3].

Deep learning has shown significant advancements in orthodontics by automating diagnosis, treatment planning, and monitoring outcomes [7, 8]. It can be utilized for: cephalometric landmark detection [9], diagnosis of malocclusion and skeletal patterns [10], detection and segmentation of teeth from dental images [11] and prediction of orthodontic treatment outcomes [12].

Timing is a fundamental element of orthodontic treatment. A patient's skeletal parameters change in the sagittal, transversal, and vertical planes due to growth and development [13]. The timing of treatment onset may be as important as selecting a specific treatment protocol. Treatment procedures should be initiated at the appropriate developmental stage for the patient to achieve the most favorable outcome with the most minor potential morbidity [14]. As in the case of growth modification treatment for mandible deficiency, it is recommended that this treatment should be started before the growth spurt [15].

Several biological indicators can be used to determine skeletal maturity, including the height of the person [16], the hand and wrist development [17], the eruption and development of the teeth [18], menarche or the transformation of the voice [19], and the cervical vertebrae maturation (CVM) [20]. In the past, radiographs taken of the wrist were the gold standard for measuring growth periods [13]. The use of hand-wrist radiographs in an orthodontic practice is discouraged since it requires additional radiographic examinations. CVM staging has been increasing in popularity among orthodontists since it can be assessed on lateral cephalograms required for orthodontic diagnosis. In lateral cephalograms, CVM is assessed based on morphological changes of the second, third, and fourth vertebrae (C2, C3, and C4) [14, 21]. However, a suboptimal intraobserver agreement exists with the CVM degree method [22, 23]. According to some studies, the CVM method is not reliable or reproducible since observers do not agree with the results. In this regard, clinicians who lack technical knowledge and experience may have difficulty using the CVM method [24].

In addition to not being user-friendly, the CVM method requires experienced practitioners to implement it. The computerized cephalometric analysis does not incorporate the conventional visual assessment of CVM stages [25]. If we can diagnose the developmental stage fully automatically and with few errors, we can overcome these limitations and utilize it as a diagnostic clinical aid in orthodontic practice.

A considerable degree of dynamic development is observed in the field of AI in CVM assessment, resulting in substantial variations in methods and results among studies. Additionally, the robustness of the body of evidence remains uncertain. Hence, we reviewed and appraised studies using AI (DL, ML, statistical modeling and rule-based AI) for CVM assessment and compared their performance measures, including accuracy, specificity, and sensitivity.

Methods

Protocol

The study protocol was registered at PROSPERO (https://www.crd.york.ac.uk/prospero/; trial registration number: PROSPERO CRD42022374636) and reported in accordance with the Preferred Reporting Items for Systematic Reviews and Meta-Analyses of diagnostic test accuracy (PRISMA-DTA) guidelines [26]. Specifically, the review question was based on PICO (P = population, I = intervention, C = comparison, and O = outcome): “What is the diagnostic performance (O) of AI (I) for CVM assessment via radiographs (P) compared to clinician’s diagnosis (C)?”.

Inclusion criteria

The following inclusion criteria were utilized for selecting the studies:

• P: Studies employed AI approaches on radiography for CVM analysis.

• I, C: AI models for classification tasks, compared with a reference test

• O: Any kind of model performance evaluation

The exclusion criteria were: Non-human studies, studies that used AI for conditions not related to the CVM, studies that did not mention details of the study samples, studies without a clear definition of the AI model, studies that did not report quantitative outcomes for AI-based CVM staging, review articles, conference papers and studies with 5-stage classification for CVM.

Information sources and search

An electronic literature search was conducted in December 2024 using the following databases: Medline (via PubMed), Google Scholar, Scopus, Embase, IEEE, ArXiv and MedRxiv. No language restrictions were applied. The specific search strategies utilized for each database, along with the number of records retrieved, are detailed in Table 1. Reference lists of eligible articles were hand-searched to identify any relevant studies missed by the database searches. Retrieved citations were imported into EndNote X9 (Clarivate Analytics, Philadelphia, PA, USA) to facilitate removal of duplicate records, study screening, and overall management of the assembled literature.

Table 1 Search queries and results in each database

Selection of sources of evidence

Title and abstract screening were performed independently by two reviewers (T.S.S, F.S) against predefined inclusion and exclusion criteria. In cases where the information provided in the title and abstract was insufficient for making an eligibility determination, the full text of the article was retrieved for review. Any disagreements between reviewers regarding study inclusion were resolved through consensus discussion with a third reviewer (S.S).

Data charting process and items

Two reviewers (T.S.S, SAH.O) independently completed the data charting process using a standardized form to extract key parameters from each included study. Extracted items comprised: bibliographic details (name of authors and the year of publication, data modality, data size (train/valid/test if available), inclusion and exclusion criteria, type of AI subset, labeling procedure, preprocessing procedure, augmentation, model structure, hardware, performance measurement, and outcome (Table 2). Any discrepancies in data charting between the two reviewers were resolved through discussion and consensus with a third reviewer (S.S).

Table 2 Summary of the included studies

Critical appraisal of individual sources of evidence

The Quality Assessment of Diagnostic Accuracy Studies (QUADAS-2) tool [48] was utilized independently by 2 reviewers (T.S.S, SAH.O) to evaluate the risk of bias. It encompasses four domains: patient selection, index test, reference standard, and flow and timing. It also addresses applicability concerns in three areas: patient selection, index test, and reference standard. Low risk of bias in patient selection is linked to clear description of patient selection methods, avoidance of inappropriate exclusions, such as difficult-to-diagnose cases or outliers excluded without a defined detection method, prevention of data leakage (e.g., overlap between training and testing datasets). In the index test domain, blinding of the reference standard to the results of the index test, transparent reporting of the test threshold, adequate information on model development and test reproducibility will lead to low risk of bias. For the reference standard, low risk of bias arises from Use of sensitive reference standards, such as evaluation by multiple examiners or robust diagnostic methods, blinding of the reference standard to the index test results. The flow and timing domain evaluates the consistency of reference standards across samples and the intervals between index tests and reference standards. Finally, the tool assesses applicability by evaluating how well the study, including its dataset, and AI model addresses the research question in the context of the intended clinical use.

Synthesis of results and meta-analysis

A hierarchical logistic regression model was utilized for the meta-analysis of diagnostic test accuracy. Inclusion criteria required studies to provide sufficient raw data to extract true positives (TP), true negatives (TN), false positives (FP), and false negatives (FN) for each diagnostic class under evaluation. This enabled the calculation of pooled estimates and 95% confidence intervals for sensitivity, specificity, positive likelihood ratio (LR +), negative likelihood ratio (LR-), and diagnostic odds ratio (DOR) across studies. Subgroup analyses were conducted for different AI techniques and different image modalities to quantify differences in diagnostic performance between artificial intelligence methods. The 12 studies included in the meta-analysis reported the values for TN, TP, FP, and FN for each of the six CVM stages. In most of the included studies, these metrics were presented in the form of a confusion matrix. Studies that did not provide complete reporting of these metrics or failed to report metrics for all six stages were excluded from the meta-analysis. Publication bias was evaluated through visual inspection of Deek’s funnel plot asymmetry and Egger’s regression test. The primary meta-analytic findings were visualized through forest plots, hierarchical summary receiver operating characteristic (HSROC) curves, and Deek’s funnel plots. All statistical analyses were executed using the metadta, metandi, and midas commands in STATA 16 (StataCorp LLC, College Station, TX).

The reliability and validity of the evidence from the studies compiled in the meta-analysis, covering various imaging techniques and tasks, were evaluated through the Grading of Recommendations, Assessment, Development, and Evaluation (GRADE) framework, as outlined by the GRADE Working Group (https://www.gradeworkinggroup.org).

Results

Study selection and characteristics

The database searches yielded 656 records, of which 31 were retrieved for full-text review following title and abstract screening. After examining the full texts, 6 articles were excluded for reasons detailed in Supplementary Table 1. Thus, a total of 25 studies satisfied the inclusion criteria.; The number of included studies rose over the observed period. Also, the data types diversified over time (Fig. 1).

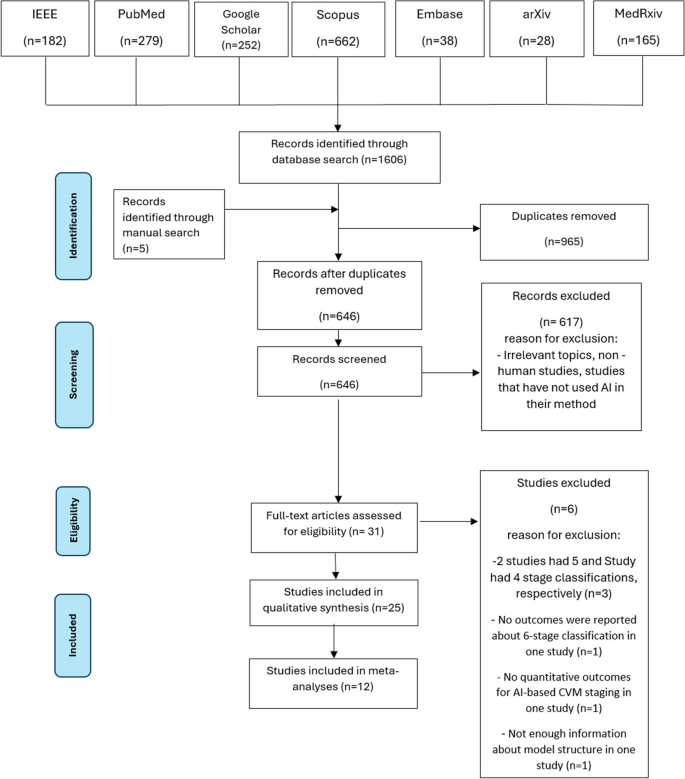

Fig. 1

Prisma flowchart

The included studies utilized two main image modalities: cephalograms (n = 22) [13, 21, 24, 25, 27, 35] and cone beam computed tomography (CBCT) scans (n = 4) [42, 44, 45, 47], as summarized in Table 1. The majority of studies (n = 22) established ground truth labels via evaluation by clinical experts. Specifically, the reference standard was defined by one expert (n = 8 studies) [13, 24, 32,33,34, 40, 41, 47], two experts (n = 8) [25, 27, 28, 31, 35,36,37, 46], or three or more experts (n = 5) [29, 38, 39, 42, 44] and one study [43] did not report the number of experts involved. Three studies employed a combination of clinical experts and software analysis to determine labels [35, 36, 46]. A total of 55 AI models were utilized, with DL being the most common approach (n = 19) [13, 21, 24, 25, 27,28,29,30,31,32,33,34,35,36,37,38,39,40,41] analysis to determine labels analysis to determine labels, followed by ML (n = 7) [13, 25, 33, 35, 42, 43, 46], statistical modeling (n = 2) [44, 45], and rule-based AI (n = 1) [47]. Among DL technologies, CNNs stood out as the predominant model (n = 14) [21, 24, 25, 27,28,29,30,31,32, 37,38,39,40,41], including ResNet architectures (n = 6)[24, 25, 28, 37,38,39]. The most utilized ML techniques were Naïve Bayes [13, 33, 46], and support vector machines [13, 25, 35], each applied in three studies and Logistic Regression applied in five studies [13, 35, 42, 44, 45]. Logistic regression models were the primary focus in statistical modeling (n = 2) [44, 45]. Augmentation techniques, such as rotation and translation, were implemented in seven DL studies [24, 28, 31, 37,38,39,40] to increase the size of the training data. Feature extraction, using landmark coordinate measurements, was performed in 10 studies [13, 21, 33,34,35, 42,43,44, 46, 47]. Additionally, the automation of region of interest (ROI) detection was carried out in four studies [25, 29, 31, 41], with methods like U-Net being used in two instances [31, 41] to delineate crucial anatomical areas from the images.

Performance metrics most reported for DL studies included accuracy, kappa coefficient, precision, recall, and F1 score. Additional measures such as mean absolute error, area under the receiver operating characteristic curve, sensitivity, and specificity were also occasionally utilized. The statistical modeling studies reported a wider range of metrics encompassing agreement percentage, R squared, predictability, as well as some of the aforementioned measures. The machine learning studies focused on accuracy and area under the curve, while the single rule-based AI study used kappa coefficients and Goodman-Kruskal gamma correlation. The detailed description of each metric is presented in supplementary Table 2.

Risk of bias and applicability

Quality assessment identified 8 studies [21, 27, 35, 36, 38, 39, 42, 44] as having low risk of bias and concerns regarding applicability across all domains. The greatest issues were found in the reference standard domain, with 13 studies [13, 24, 25, 28, 30, 32,33,34, 40, 41, 43, 45, 47] deemed at high or unclear risk of bias and 17 studies [13, 24, 25, 28,29,30,31,32,33,34, 37, 40, 41, 43, 45,46,47] harboring applicability concerns. Performance of the included studies for assessed domains are summarized in Table 3.

Table 3 Quality assessment in individual studies. Green represents low risk, orange represents uncertain risk and red represents high risk. If the risk is low in all domains, the study is at low risk of bias. A study is judged to be at risk of bias if there was unclear or high risk in one or more domains

Results of individual studies

The accuracy of DL for cephalograms varied widely from 0.57 to 0.95, the Kappa coefficient from 0.8 to 0.96, precision from 0.25-0.99, recall from 0.33-0.99, and F1 score from 0.29-1.0. The highest reported accuracy was 0.95 using ANN on 360 cephalograms [33] and the lowest accuracy was 0.57 using CNN on 588 cephalograms [27]. The highest reported precision was 0.99 using CNN [33] and the lowest was 0.25 using ResNet [37]. Also, the highest reported sensitivity, specificity, and F1 score was 100% using ANN [34].

The reported accuracy of ML ranged from 0.60 to 0.99. The highest reported accuracy was 0.99 using Decision tree on the 300 cephalograms [13] and the lowest was 0.60 using SVM on the 1018 cephalograms [25].

All studies conducting statistical modeling used CBCTs [44, 45]. The reported kappa coefficient was 0.90 using logistic regression on CBCT [44]. The reported R2 was 0.84 for females and 0.90 for males using regression models on CBCT [45].

The only study using rule-based AI was conducted on cephalograms and CBCTs. The reported Kappa coefficient and Gamma value were 0.87 and 0.99 [47].

Synthesis of results

The meta-analysis included 12 studies (28 models/datasets) [13, 24, 25, 27, 29,30,31, 33, 37,38,39,40]. For each CS the pooled sensitivity, specificity, diagnostic odds ratio (DOR), positive likelihood ratio (LR +), negative likelihood ratio (LR-) were computed separately. The summary points for sensitivity were based on a range of estimates across the studies included in the analysis, with values ranging from 0.64 for CS3 (95% confidence interval [CI], 0.57–0.71) to 0.87 for CS1 (95% CI, 0.81–0.91). The pooled estimate of specificity ranged from 0.94 for CS4 (95% CI, 0.92–0.95) to 0.97 for CS1 (95% CI, 0.95–0.98).

Pooled diagnostic odds ratio (DOR) was between 32 for CS3 (95% CI, 22-47) to 213 for CS1 (95% CI, 115-394). Other results of the meta-analysis are summarized in Table 4.

Table 4 Summary of the meta-analysis result

The plot (Fig. 2) depicted the visualization of various elements, including the Hierarchical Summary Receiver Operating Characteristic (HSROC) curve, prediction region, summary point, and confidence region. The HSROC model is a combination of sensitivity and specificity estimates from individual studies. The beta parameter was computed for each CS (from 1 to 6), and the values were −0.02, −0.06, −0.15, −0.24, −0.83, and 0.68, respectively. This indicates that there is no significant skewness in the diagnostic odds ratio for all CSs except for CS5 and CS6 (p < 0.05).

Fig. 2

Results of meta-analysis on Sensitivity and Specificity of the deep learning models for assessment of CVM, and the Hierarchical Summary Receiver Operating Characteristic (HSROC) curve. Each “study estimate” is shown as a data point, representing sensitivity, specificity, and sample size. The "Summary point" displays the pooled sensitivity and specificity from all studies. The "95% confidence region" indicates the expected location of the pooled summary point with 95% certainty, while the "95% prediction region" forecasts sensitivity and specificity ranges for future studies. Pictures “a” to “f” refer to CS1 to CS6 respectively. The beta parameter was significant in CS5(p = 0.013) and CS6(p = 0.016) showing heterogenicity among included studies for these stages

No significant publication bias was detected across all studies (p > 0.05). In analyzing heterogeneity across the included studies, the inconsistency index (I²) was found to be over 97%, indicating that nearly all observed variability in outcomes is due to genuine heterogeneity. Subgroup analysis was done for machine learning and deep learning tasks (Table 5).

Table 5 Summary of the sub-group analysis

The summary points for sensitivity were based on a range of estimates across the studies included in the analysis, with values ranging from 0.67 for CS3 (95% CI, 0.60-0.73) to 0.84 for CS1 (95% CI, 0.76-0.89) for deep learning and from 0.52 for CS4 (95% CI, 0.38-0.65) to 0.93 (95% CI, 0.86-0.97) for machine learning models. The pooled estimate of specificity ranged from 0.94 for CS5 (95% CI, 0.92-0.95) to 0.97 for CS1 (95% CI, 0.96-0.98), and from 0.93 for CS5 (95% CI, 0.87-0.97) to 0.97 for CS2 (95% CI, 0.94-0.98). The diagnostic accuracy in deep learning and machine learning models revealed significant heterogeneity (p < 0.0001), with minimal impact from subgroup analyses on sensitivity or specificity. Subgroup analyses for different imaging modalities could not be conducted due to limited data availability across modalities. Publication bias was assessed through Egger’s regression test and visual inspection of Deek’s funnel plots generated for each CS. There was no strong statistical evidence of significant publication bias or small study effects in the analyzed dataset (Egger’s test, p > 0.05). The Deek’s funnel plots for each CS are presented in Fig. 3.

Fig. 3

Funnel plots for assessing publication bias. The funnel plots are used to visually assess publication bias across multiple studies. Each plot displays the log diagnostic odds ratio on the x-axis and the inverse standard error (SE) on the y-axis. The funnel plot is typically symmetrical in the absence of bias, with higher precision studies (smaller SE) clustering near the top and lower precision studies (larger SE) scattering toward the bottom. The open circles represent individual studies. The solid line indicates the regression line. Asymmetry in the distribution of studies relative to the regression line may suggest publication bias. Individual Plots: Plot a, b, c, d, e, and f all visually show studies distributed across the funnel. The p-value of Deeks' Funnel Plot Asymmetry Test, indicated on each plot, provides statistical evidence for asymmetry. If p > 0.05, there is no significant asymmetry, suggesting a low likelihood of publication bias. If p < 0.05, significant asymmetry is present, indicating a potential risk of publication bias

Appraisal using the Grading of Recommendations Assessment, Development and Evaluation (GRADE) framework deemed the overall Certainty of Evidence for the studies compiled in the meta-analyses to be “moderate” (Table 6).

Table 6 Results of grading of recommendations assessment, development and evaluation (GRADE)

Discussion

In the field of orthodontics, determining the optimal time to initiate treatment is crucial for maximizing its effectiveness. Failing to accurately identify and address orthodontic issues at the appropriate stage may necessitate surgical intervention later on to correct jaw deformities, highlighting the importance of timely intervention [30, 49, 50]. The conventional technique for determining the initiation of the orthodontics treatments is based on evaluating CVM. However, this approach has several limitations, such as its subjective nature, which will lead to a low intra-observer agreement, and an inability to detect subtle changes. AI can address these shortcomings by providing precise and unbiased analysis of digital images of cervical vertebrae, minimizing the variation between examiners, and enabling more accurate tracking of treatment progress [24, 30]. The present study aimed to review the role of AI in CVM assessment and how most of the models show great promise due to their high accuracy in this task.

The AI models developed exhibited varying degrees of performance across different metrics. For instance, sensitivity ranged widely from 0.45 to 1, while specificity varied from 0.75 to 1. These results suggest that, while the models may not deliver optimal performance in the intricate task of CVM evaluation, the outcome of AI-based CVM staging models depends on the nature of the applied model and can excel humans in some instances. Previous studies showed low inter-examiner agreement reports which were 0.50-0.74 [13, 37].

To enhance the model's accuracy, both the input image and the subject's chronological age were utilized in Atici et al. study [40]. Recognizing the divergent growth rates between male and female patients, the dataset was segregated by gender. This stratification aimed to optimize the model's efficiency by incorporating chronological age as a variable. This approach is consistent with findings from Kim et al. [51], who observed improved model accuracy when incorporating both chronological age and gender into the input. This methodological choice underscores the significance of demographic factors in refining the predictive performance of models designed for assessing developmental stages.

Our meta-analysis demonstrated that AI models exhibited superior performance in classifying CS1 compared to other stages. This superior accuracy can be attributed to the distinct morphology of CS1, where C1, C2, and C3 are characterized by flat lower borders. The absence of concavities or other morphological changes in CS1 simplifies its detection, making it more straightforward for both AI models and human examiners to identify. On the other hand, the overall performance of detecting CS3 was lower than in other stages. This might be related to the difficulties of detecting CS3 compared to other stages, primarily due to its inherent morphological overlap with adjacent stages like CS2 and CS4. This overlap can blur the distinction between the stages, leading to potential misclassifications. Additionally, the variability in the progression of the third vertebra from being rectangular to square introduces further inconsistencies, making CS3 a particularly intricate stage to identify with high precision [14, 49].

A key distinction emerges between deep learning models designed for visual data interpretation, CNNs, versus those built for structured data analysis, such as ANNs and traditional machine learning algorithms. Among the models reviewed, 33 leveraged CNNs to process and interpret visual data directly. In contrast, 4 studies utilized ANNs for analyzing structured data, while others employed traditional algorithms reliant on structured inputs. CNNs streamline workflows by eliminating the need for manual feature extraction and anatomical measurements, automating the laborious processes required by conventional methods. This automation saves clinicians valuable time per evaluation. Additionally, algorithmic feature extraction standardizes the analytical process, enhancing diagnostic reliability and consistency compared to manual measurements prone to subjectivity and human error. By minimizing evaluator discrepancies in assessments of skeletal maturation stages, deep learning models like CNNs can better assist clinicians in cervical vertebral maturation evaluations than methods reliant on structured data inputs. Artificial Intelligence has emerged as a transformative tool in orthodontics, particularly in the analysis of 2D cephalograms and 3D CBCT images. The latest deep learning methods have enabled automated cephalometric analysis, offering precise and efficient identification of landmarks, which is crucial for diagnosis and treatment planning [52]. Innovations such as personal computer-based cephalometric landmark detection utilizing online cephalograms further enhance accessibility and accuracy in orthodontic evaluations [53]. In 3D imaging, deep learning algorithms facilitate multiclass CBCT image segmentation [54] and automatic detection and segmentation of the pharyngeal airway, contributing to improved assessments of airway-related orthodontic conditions [55]. Additionally, deep learning-based integrated tooth models, combining intraoral scans and CBCT data, provide accurate 3D evaluations of root positions during orthodontic treatment, ensuring better outcomes and precise treatment adjustments [56].

To date, two reviews have been conducted in this area, each providing valuable insights into the application of AI and neural networks in cervical vertebral maturation (CVM) assessment. The review by Mathew et al. [57] focused on neural networks for cervical vertebral maturation (CVM) classification, reporting accuracy ranging from 50% to 90%, while highlighting concerns about bias and the need for standardized reference methods. Kazimierczak et al. [58] examined a broader spectrum of AI models, with accuracy ranging from 57% to 95%, emphasizing variability in performance due to differences in models, datasets, and methodologies, and calling for more robust research. Building on these, our review includes a larger number of studies, performs a meta-analysis, and conducts subgroup analyses based on AI methodologies, offering a more comprehensive evaluation of AI performance in CVM assessment.

The use of AI in CVM assessment holds significant promise; however, several limitations and challenges must be considered. To begin with, many of the studies withhold key information, as they often fail to share their datasets or provide in-depth details about their models. In this review, only two studies had public datasets [40]. On the other hand, there are two studies that only included female patients in their datasets [42, 44]. Moreover, these studies did not share any details about their dataset classes, for example, the number of samples from different age or sex groups [29, 30, 32], and some studies only shared data about age groups and no details about sex groups [24, 27, 31, 36, 38, 41]. Sharing model details is necessary for other researchers to reproduce the models and make the reported accuracy and metrics more reliable. Crucially, this absence of information could mask issues such as imbalanced, insufficient, or mislabeled datasets. Such issues might adversely affect the AI model's performance and generalization, both of which are heavily reliant on the quality and representativeness of the training dataset. Moreover, any errors in the dataset's labeling and annotation could significantly affect the accuracy of the AI models [59]. Therefore, expert labeling and annotation are crucial in training the models. Unfortunately, some studies [21, 34, 42, 45, 47] have used datasets labeled by operators, examiners, or researchers. It is rational to assume that annotations and datasets of these studies surely had less accuracy and reliability compared to studies that had been labeled by experienced orthodontics. To ensure the highest possible accuracy when using AI models for real-world decision-making problems, it is essential that datasets are labeled by experts, particularly in the sensitive task of CVM assessment. Therefore, we recommend that datasets for AI model training should be carefully curated and labeled by a panel of experts to achieve the most reliable performance.

Another significant limitation of utilizing AI for CVM assessment lies in the inherent unreliability of the prevailing gold standard for CVM evaluation which is highly subjective and largely depends on the observer's expertise and interpretation. The nuances in the cervical vertebrae transitions, which evolve gradually rather than abruptly, contribute to the low interexaminer agreement [13, 37]. Often, these transitions manifest as intermediary stages, displaying characteristics of two stages simultaneously. This inherent overlap complicates the clinician's task of determining a clear cut-off for each definitive stage, thereby reducing both the validity and reproducibility of annotations. To address this obstacle, we recommend that CVM annotations be cross-verified using auxiliary methods, such as hand-wrist radiographs, to enhance the accuracy and reliability of the assigned labels.

When utilizing AI in medicine and dentistry, it is crucial to consider ethical issues to ensure patient well-being. Informed consent is necessary, and patients should have the option to decline the use of AI in their diagnosis and treatment [21, 60]. Patient data must be kept secure, confidential, and only accessible to authorized personnel [61]. While AI demonstrates significant promise for clinical applications, AI systems employed in evaluating CVM stages must undergo rigorous testing and validation. While AI can assist in diagnosis and treatment planning, a human clinician should always be involved, and the AI systems should be used as a tool rather than a replacement. Moreover, patients should also have access to information about how the AI system works and how it generates its predictions [62, 63].

AI technology has great potential for improving CVM assessment. Future directions include developing more sophisticated DL models to capture complex CVM features and incorporating diverse datasets from different populations and age groups. Combining AI with other clinical factors such as dental and skeletal findings could also improve accuracy and usefulness in clinical practice. Additionally, using public datasets and codes would promote reproducibility, collaboration, and unbiased data, addressing concerns about bias and ethical considerations associated with AI in medical diagnosis. Overall, these directions hold great promise for building accurate and reliable AI models for CVM assessment.

Conclusion

The use of AI in CVM assessment has shown relatively high accuracy and efficiency. Hence, it holds potential as an auxiliary tool for diagnosis and pinpointing the optimal initiation time for growth modification treatments in the future. However, challenges such as the unreliability of the accepted gold standard and the low level of agreement among clinicians need to be addressed to enhance the accuracy and reliability of AI models. In the future, further development and standardization of AI technology can significantly improve the accuracy and efficiency of CVM assessment and ultimately benefit both patients and clinicians.
